SINGLE ECCENTRIC BUTTERFLY VALVES (SEB SERIES)

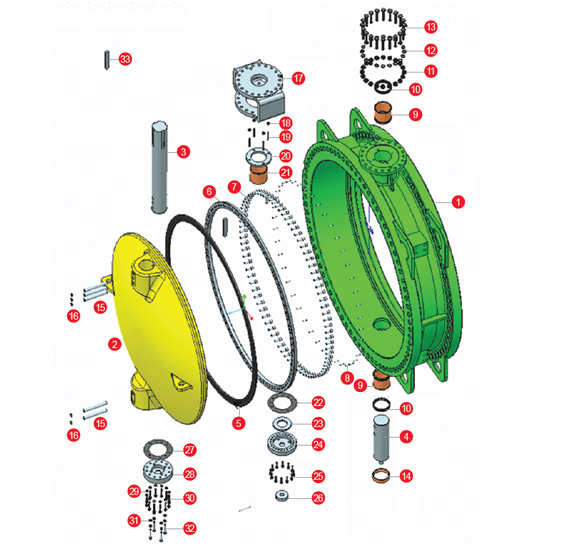

DRAWING AND PART LIST OF SINGLE ECCENTRIC BUTTERFLY VALVES
-
DKC
| No. |
Part Name |
| 1 |
BODY |
| 2 |
DISC |
| 3 |
MAIN SHAFT |
| 4 |
STUB SHAFT |
| 5 |
DISC SEAT |
| 6 |
RETAINER |
| 7 |
SOKET HEAD BOLT |
| 8 |
SET SCREW |
| 9 |
BUSH |
| 10 |
PACKING |
| 11 |
HEX NUT |
| 12 |
SPRING WASHER |
| 13 |
HEX HEAD BOLT |
| 14 |
GRAND BUSH |
| 15 |
SHAFT PIN |
| 16 |
SHAFT PIN CAP |
| 17 |
BRAKET |
| 18 |
HEX NUT |
| 19 |
STUD BOLT |
| 20 |
GRAND FLANGE |
| 21 |
GRAND BUSH |
| 22 |
END COVER GASKET |
| 23 |
GLAND FLANGE |
| 24 |
END COVER |
| 25 |
SOCKET HEAD BOLT |
| 26 |
THRUST BEARING |
| 27 |
END COVER CAP GASKET |
| 28 |
END COVER CAP |
| 29 |
SPRING WASHER |
| 30 |
HEX HEAD BOLT |
| 31 |
PLANE WASHER |
| 32 |
HEX HEAD BOLT |
| 33 |
KEY |
DKC
| Range |
Application |
| Size |
8"(200A) ~ 160"(4000A) |
| Fluid |
Water, Air, Steam, Gas |
| Rating |
JIS 10K, PN 10, ANSI 150#, AWWA C 207 |
| End Connection |
Wafer, Lugged, Flanged |
| Temp. Range |
-20 ~ 165 °C |
| Materials |
Body |
Cast Iron, Ductile Iron, Cast Steel(Rubber Lining), Stainless Steel,
(Ni) Al Bronze,
(Super) Duplex S.S etc.
|
| Disc |
Cast Iron, Ductile Iron, Cast Steel(Rubber Lining),
Stainless Steel, (Ni) Al Bronze,
(Super) Duplex S.S etc.
|
| Seat |
Rubber (EPDM, NBR, SILICON etc.) |
