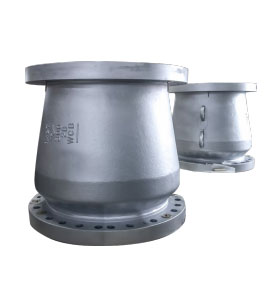

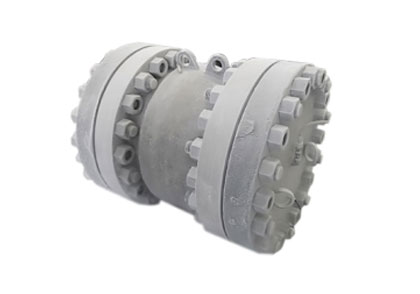

Cryogenic Nozzle Check Valves
-
PRODUCT MODEL
- DKV-NCK Nozzle check valve

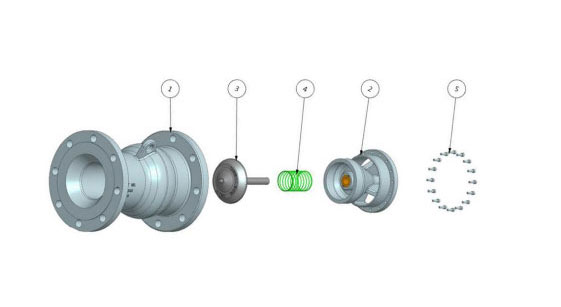

Drawing And Part List Of Nozzle Check Valves
-
DKC
| No. |
Part |
| 1 |
BODY |
| 2 |
DIFFUSER |
| 3 |
DISC |
| 4 |
COIL SPRING |
| 5 |
DIFFUSER BOLT |
VALVE FEATURES
- Designed by Computational Fluid Dynamics (CFD)
- Metal to Metal Seated design.
- Tight shut-off is obtained by means of a metal-to-metal sealing
- Spring loaded disc design allows mounting in any orientation
- Short stroke length reduces closure time and minimizes water hammer
- Low Pressure drop to avoid Cavitation and turbulence
- Short light weight Disc & Fast closing Spring design protects the piping against sudden Surge
STANDARD COMPLIANCE
- The face to face dimension shall be in accordance with API 6D, ASME B16.10
PRODUCTION RANGE
- Valve Size : 50mm (2in) ~ 1,500mm (60in)
- Working Temperature : -196℃ ~ +650℃
- Working Pressure : up to 425 bar
PPLICABLE FLANGE
- KS / JIS 5K / 10K / 16K / 20K / 30K / 40K / 63K
- BS EN1092-1 PN6 / PN10 / PN16 / PN25 / PN40 / PN63 / PN100
- ASME B16.5, B16.47 SR.A / B CLASS150 / 300 / 600 / 900 / 1500 / 2500
- AWWA C207 CLASS B / D / E
DKC
| Size |
150A (6”) ~ 700A (28”) |
| APPLICABLE FLANGE STD. |
ASME B16.5 Class 150 ~ Class 1500
JIS B 2220 10K ~ 64K |
| TEMPERATURE RANGE |
Low Temperature Carbon Steel |
- 45°C to 300°C (-50°F to 572°F ) |
| Stainless Steel |
- 196°C to 300°C (-320°F to 572°F) |
| Duplex |
- 196°C to 300°C (-320°F to 572°F) |
| APPLICATION |
Chemical, Oil & Gas Industries |
Steam Injection System |
| Residual Heat Removal System |
Power Station, Water Pumping Stations |
| Nuclear Power Plants |
Natural Gas, Refineries |
| Cracker Plant |
Critical Equipment Discharge |
| Containment Isolation |
Gas Compressor Unit |
| Water, Steam, Gas, Vacuum |
Offshore & Onshore Production Platform, FPSO |
