  • DOUBLE ECCENTRIC BUTTERFLY VALVES
  • DOUBLE ECCENTRIC BUTTERFLY VALVES

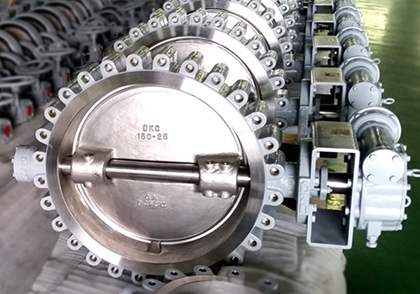

  • Double Eccentric Butterfly Valves
    MANUAL / PNEUMATIC / MOTOR
    Enhanced seat durability as applying double offset
    Bi-Directional Sealing
    Changeable Seat and parts due to standardization

    Soft Seat Design

    Solid seat, free floating, pressure assisted seal
    No additional parts are required to maintain positive seal
    Class VI Bi-Directional shut off

    Fire Safe Seat Design

    Solid seat with metal back up seat, free floating, pressure assisted seal
    No additional parts are required to maintain positive seal

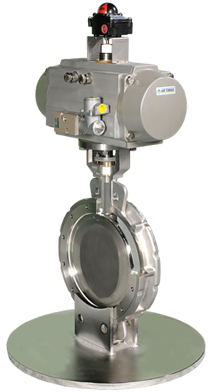

ECCENTRIC BUTTERFLY VALVE (HIGH-PERFORMANCE TYPE) (HPB SERIES)

High performance, zero leakage butterfly valves

High Performance of the valve fulfils the highest quality with zero-leakage shut-off demanded by various industries. Easy maintenance in the field is a benefit to maintain the facility. The fire safe design offers superior performance in compliance with the most demanding standards. After a test of over 20,000 cycles at 300 psi pressure to preferred direction, the seat remained in excellent condition, continuing to provide a bi-directional zero-leakage seal.

  • Chemical Plants
    Oil and Gas Processing
    Refinery
    Pulp and Paper
    Oxygen Service
    Cryogenic Service
